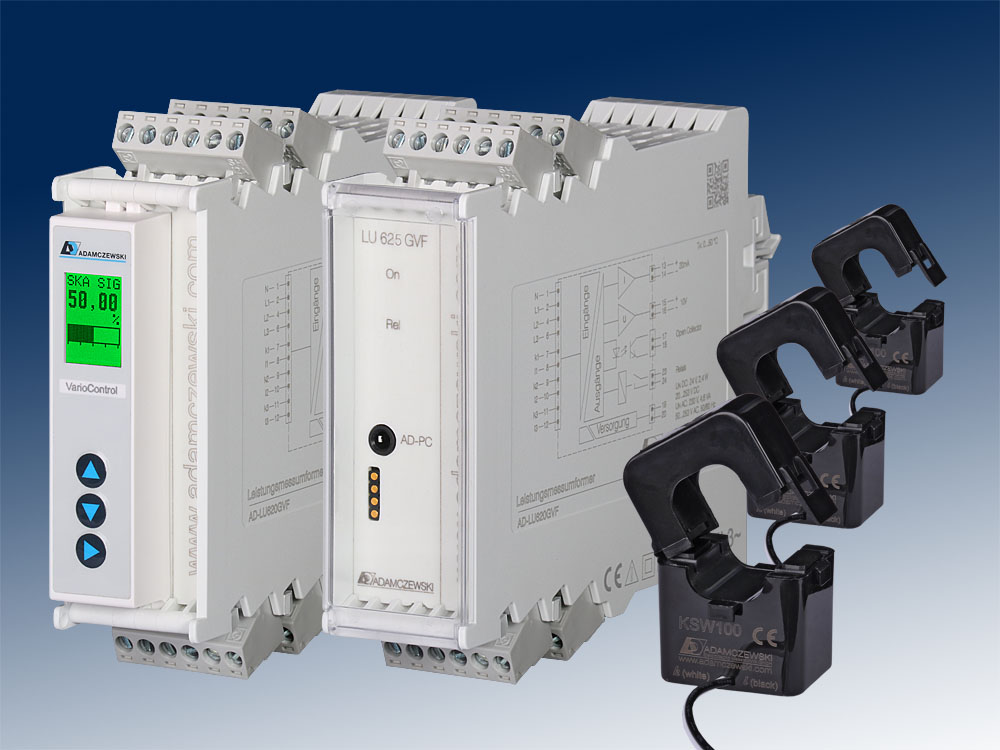

Power Meter AD-LU 625 GVF
Design: DIN-rail housing 33x110x134mm (wxhxd) with plug-in terminals
Function: measurement of all parameters of three-phase power systems
Inputs U: 30...253VAC
Inputs I: external split-core current transformer type series AD-KSW (optional available)
Output 1 (analog): current (max. 20 mA)
Output 2 (analog): voltage (max. 10 VDC)
Output 3 (digital): normally open contact
Output 4 (digital): semi-conductor relay
Interface: via detachable display VarioControl or AD-Studio software (both optionally available)
Power-supply: wide-range 20...253VDC / 50...253VAC (50-60Hz)
