ADAMCZEWSKI - VC3GF-R2

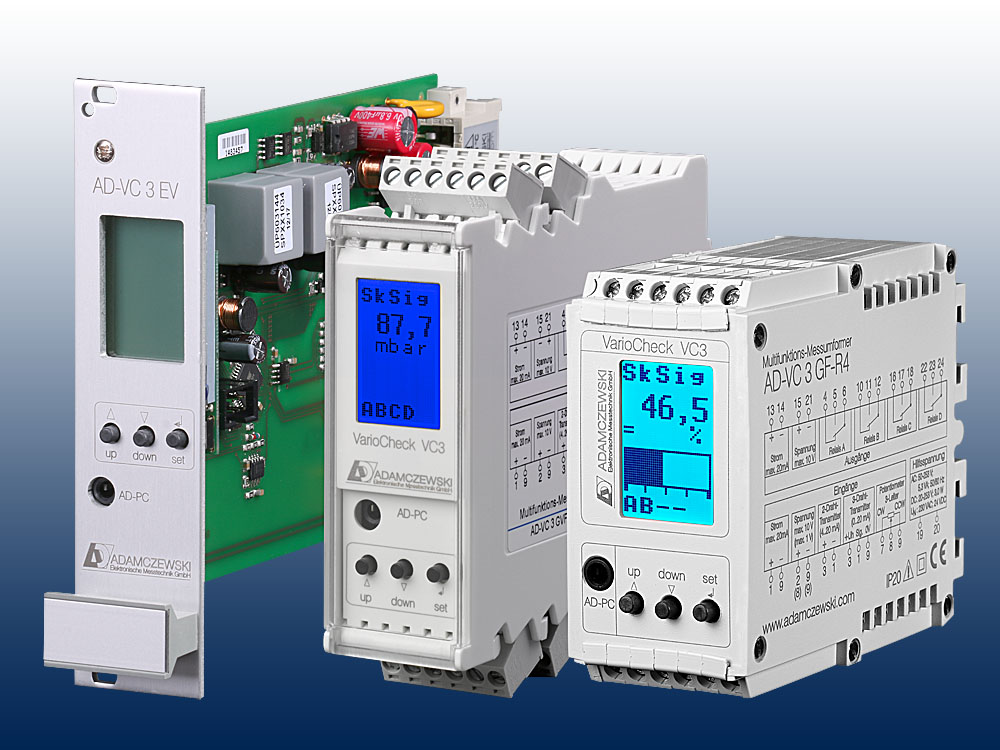

VarioCheck AD-VC 3 GF-R2
Design: DIN-rail housing 38x78x103mm (wxhxd)
Input: current, voltage, potentiometer, transmitter (freely programmable)
Output 1 (analog): current (max.20mA)
Output 2 (analog): voltage (max.10V)
Output 3 (digital): 2x relay (change-over contact)
Display: backlit LCD (3-colored)
Setup: programming keys on the front panel or via API and AD-Studio software (optional available)
Power-supply: 20...253DC / 50...253VAC (50-60Hz)
Incl. pre-set user language and operating manual (English version)
