GOUDSMIT MAGNETIC - SEMR012078

https://endurasupplyshop.com/web/image/product.template/219432/image_1920?unique=156e0c3

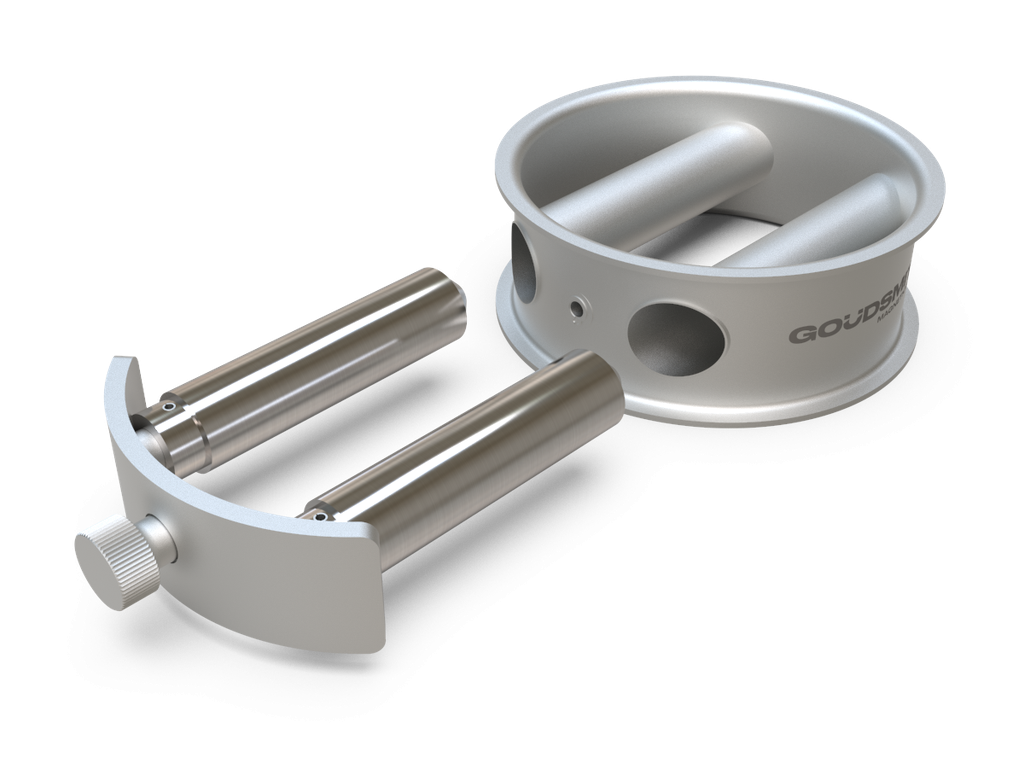

Magnetic grids - also called grate magnets - are often placed at a pouring point or receiving hopper. They filter very fine magnetic and even weakly magnetic ferrous contaminants from free-flowing powders and granulates. Often used for control purposes. Manual quick-cleaning by extractor.

Minimum order quantity nan Units


Request Quote

$ 0.00 0.0 USD $ 0.00

$ 0.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    Shipping: Made by Order 1-2 Weeks

    Shape: Round Size: Ø120 mm Max. particle size: 10 mm Min. Fe-particle size that can be caught: 0,03 mm Cleaning (ferrous particles disposal) method: Manual Ferrous particles disposal via: Manually taking out magnets + pulling them out of extractor Interface connection type/size: Jacob connection DN120 Materials in contact with product: AISI316L (SS 1.4404) Surface treatment/finishing: S1: Grit blasted, Ra 3 µm Welds: WE: Intermittently welded Max. operating temperature: 60 °C Min./max. ambient temperature: -20 to 60 °C ATEX marking: Free of own ignition sources Suited for use in ATEX zone: 20, 21 and 22 Waterproof: Yes Magnetic system: Magnetic bar in extractor tube Magnet quality: Neodymium N-42 Magnetic bar size: Extractor tube Ø25 mm; magnetic bar Ø23 mm Number of magnetic bars: 2 Flux density on (internal) magnetic bar (±10%): 10700 gauss Flux density on magnet tube in contact with product (±10%): 8000 gauss Diameter: 135 mm Height: 50 mm Weight: 1,2 kg
