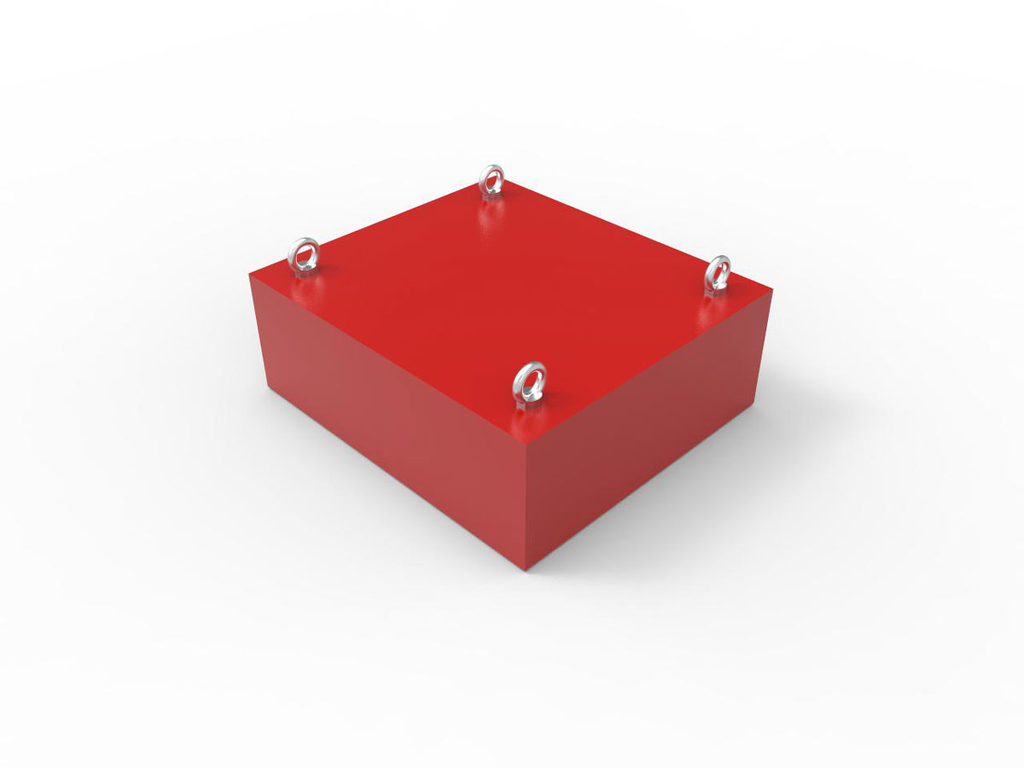

GOUDSMIT MAGNETIC - SVMF080800

https://endurasupplyshop.com/web/image/product.template/219513/image_1920?unique=82b717e

Removal of pieces of steel in the recycling industry or for protection of grinding mills. For installation up to 400 mm above conveyor belt.

Minimum order quantity nan Units


Request Quote

$ 0.00 0.0 USD $ 0.00

$ 0.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    Shipping: Made by Order 1-2 Weeks

    Min. Fe-particle size that can be caught: 0,5 mm Advised max. installation height: 155-440 mm Production stop required during ferrous particles disposal: Yes Cleaning (ferrous particles disposal) method: Manual Ferrous particles disposal via: Manually by wiping Installation/transport interface: Lifting eye Ø50 mm (4x) Material housing: AISI304 (SS 1.4301) / S235JRG2 (St 1.0038) Surface treatment/finishing: Painted Colour housing: Red (Traffic red): RAL3020 Max. operating temperature: 100 °C Min./max. ambient temperature: -20 to 40 °C Magnetic system: Permanent ferrite magnet with flux boost Magnet quality: Anisotropic ferrite F-33 Magnet field strength (flux density) (±10%): 2300 gauss Length: 840 mm Width: 946 mm Height: 433 mm Weight: 1050 kg
