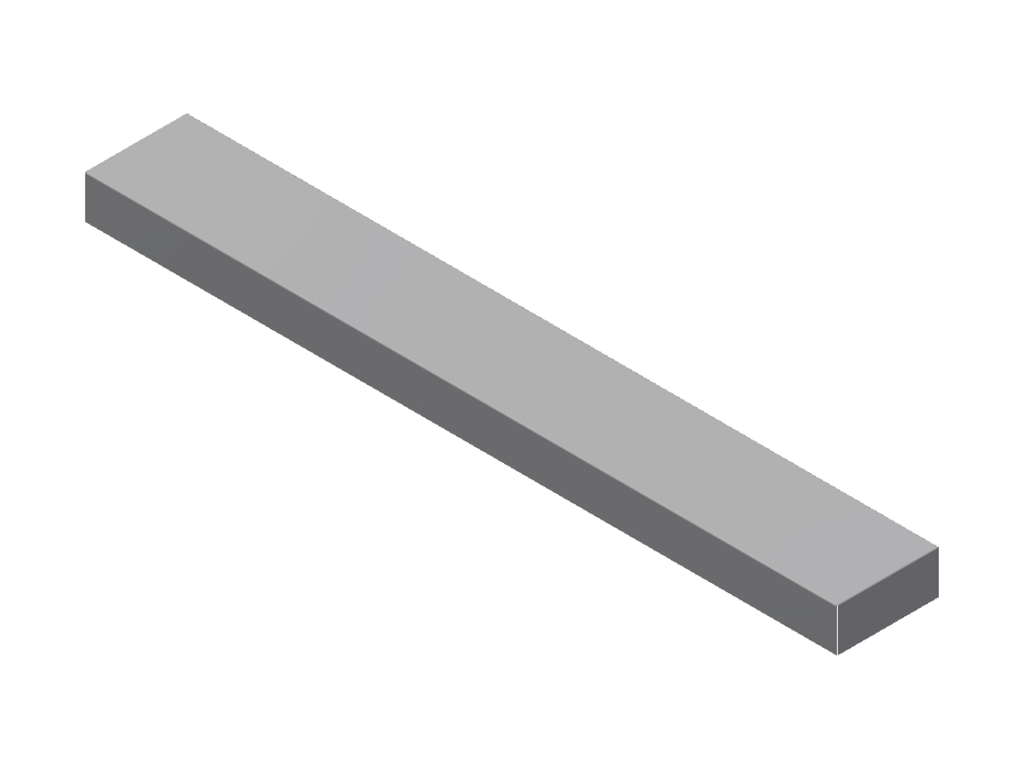

GOUDSMIT MAGNETIC - TBAA075004

https://endurasupplyshop.com/web/image/product.template/219267/image_1920?unique=545edea

Magnetic rails are used for straight product flows or flows with side in-feed or discharge. The most suitable magnetic rail version depends on the position in the conveyor system.
Various functions are possible. Magnetic rails are also available in a waterproof version.


Request Quote

$ 741.92 741.92 USD $ 741.92

$ 741.92

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    Shipping: Made by Order 1-2 Weeks

    Shape/application: Straight Weakening infeed: No Weakening outfeed: No Mounting interface: Threaded hole M8 (2x) Material housing: AISI304 (SS 1.4301) / S235JRC+C (St 1.0122) Surface treatment/finishing: Painted Colour housing: Red (Traffic red): RAL3020 Min./max. ambient temperature: -20 to 100 °C Waterproof: No Magnet type: Ferrite magnet Magnet field strength (flux density) (±10%): 1800 gauss Length: 750 mm Width: 102 mm Height: 44 mm Weight: 13 kg
