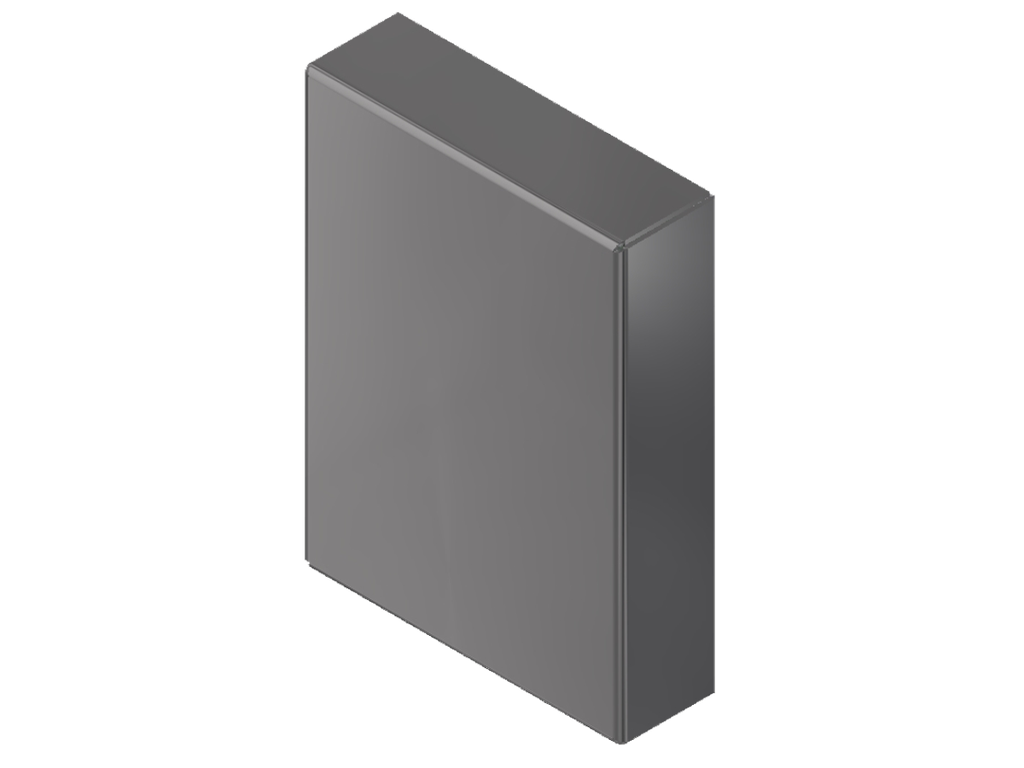

GOUDSMIT MAGNETIC - TBSP030210

https://endurasupplyshop.com/web/image/product.template/219170/image_1920?unique=545edea

Ferrite sheet separators are a cost-effective solution for steel sheets that do not adhere strongly to each other. These separating magnets are particularly suitable for dry and thin sheets that come apart quite easily.


Request Quote

$ 447.22 447.22 USD $ 447.22

$ 447.22

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    Shipping: Made by Order 1-2 Weeks

    Max. sheet thickness: 4 mm Max. stack height: 170 mm Recommended working surface (for clean sheets): 40 dm² Recommended working surface (for sticky sheets): 26 dm² Mounting interface: Threaded hole M8 (2x) Material housing: AISI304 (SS 1.4301) / S235JRC+C (St 1.0122) Surface treatment/finishing: Painted Colour housing: Red (Traffic red): RAL3020 Min./max. ambient temperature: -20 to 100 °C Magnetic system: Permanent ferrite magnet with flux boost Magnet quality: Anisotropic ferrite F-33 Length: 210 mm Depth: 47 mm Width: 154 mm Weight: 7,6 kg
