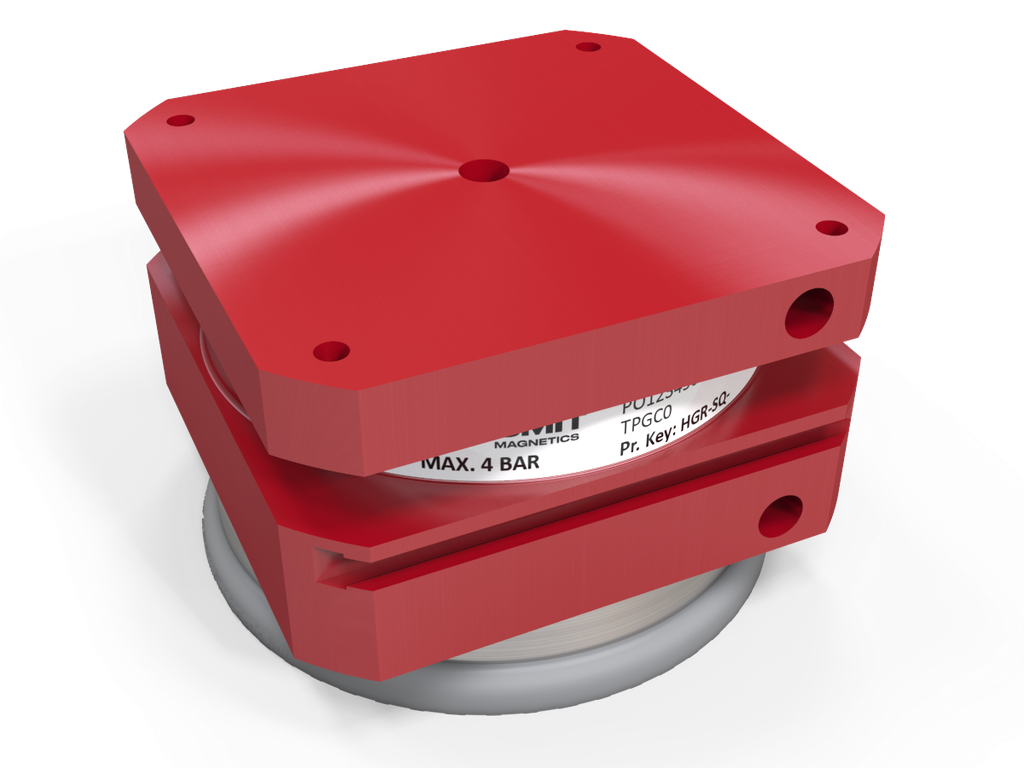

GOUDSMIT MAGNETIC - TPGC100088

https://endurasupplyshop.com/web/image/product.template/219287/image_1920?unique=79732f1

Pneumatic magnetic grippers allow you to safely handle steel workpieces and plates with great speed and precision. Grippers – also known as end effectors – are ideal for speeding up or automating your production process. Durable, safe and accurate robot grippers are a reliable end of arm solution due to the bistable design.


Request Quote

$ 796.37 796.37 USD $ 796.37

$ 796.37

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    Shipping: Made by Order 1-2 Weeks

    Switching: Pneumatic Dimension lifting surface: Ø106 mm Advised working load: 390 N Remark Advised working load: Under ideal conditions - with safety factor 3 acc. EN13155 Max. magnetic tear off force: 1180 N Remark max. magnetic tear off force: Under ideal conditions Min. advised sheet thickness: 3 mm Mounting interface: Threaded hole M6 (8x) + Threaded hole M10 Pneumatic connection: G¼" (2x) Material friction pad/ring: NBR 60° Shore A Material housing: Aluminium / AISI316L (SS 1.4404) (screw cap) Surface treatment/finishing: Anodized Colour: Red Min./max. ambient temperature: 0 to 70 °C Operating pressure: Max. 4 bar Air consumption per cycle (1x up, 1x down): 1,352 Magnetic system: Permanent Neoflux® magnet Magnetic layout (number of magnet poles): 8 Magnet quality: Neodymium N-45 Incl. friction pad on magnetic surface: Yes Length: 106 mm Width: 106 mm Height: 71 mm Weight: 1,5 kg
